通信接口：UART
工作頻率：2.4GHz
藍牙協議：BLE5.4

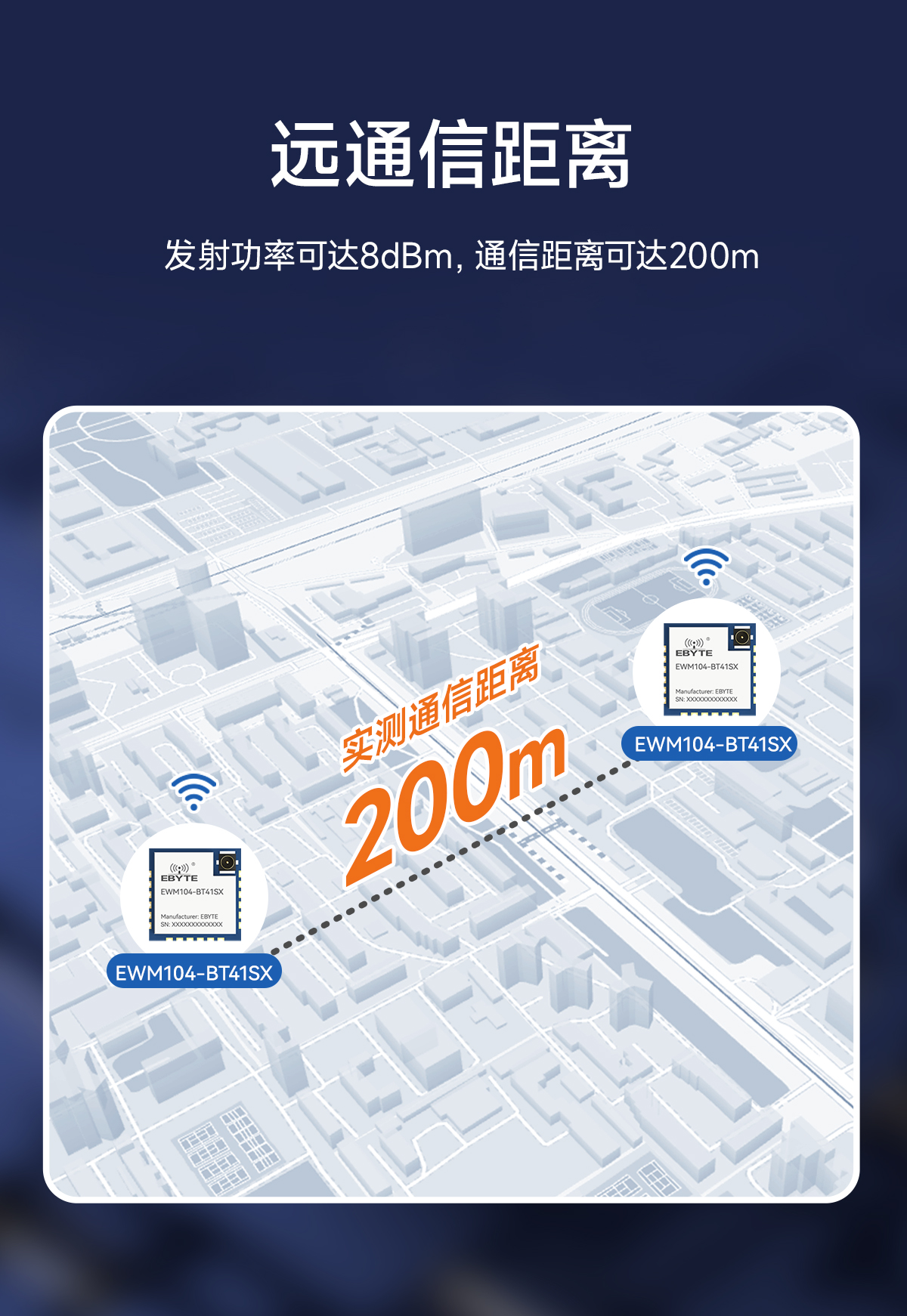

通信距離：200m

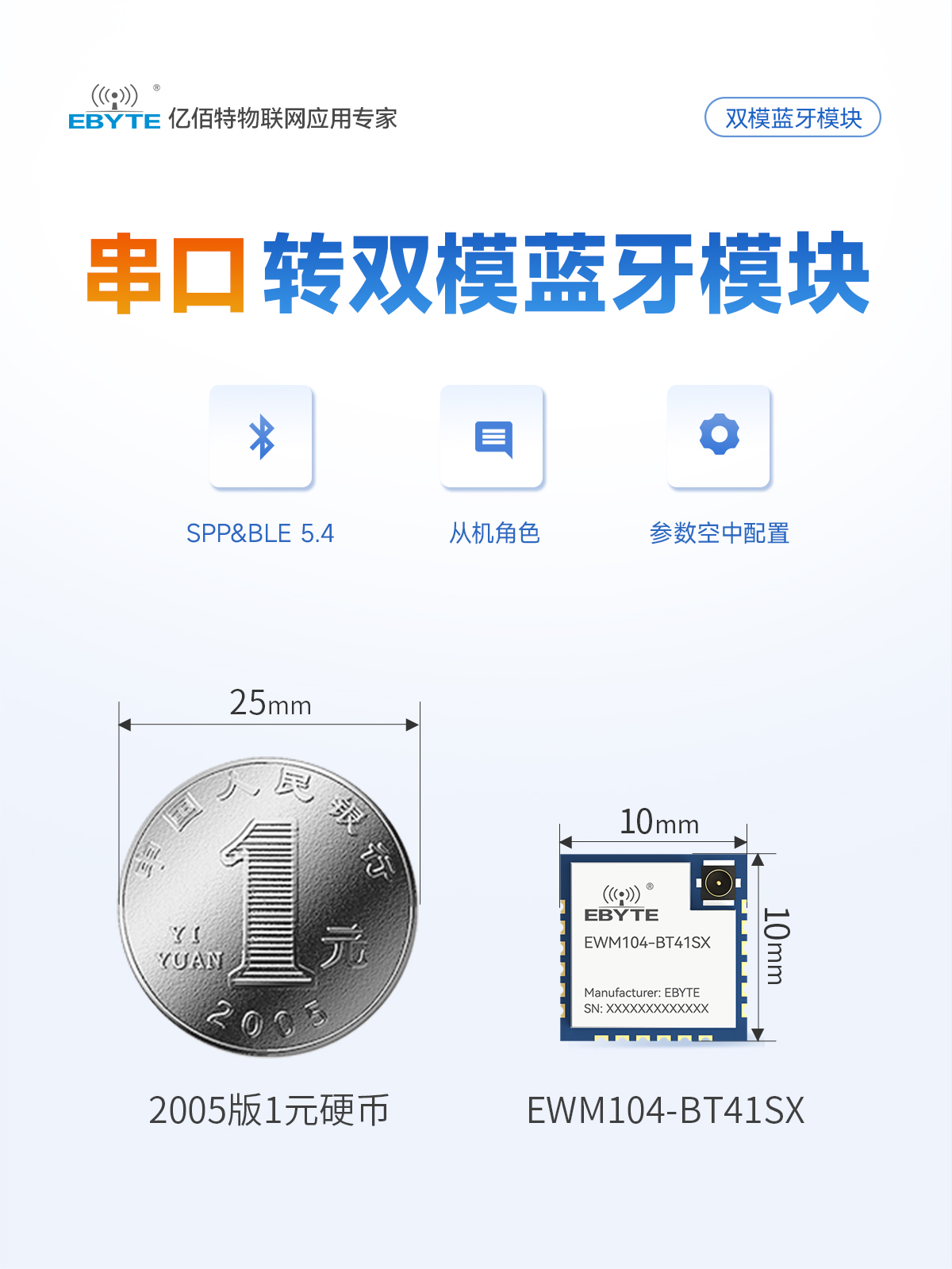

產品尺寸：10*10mm

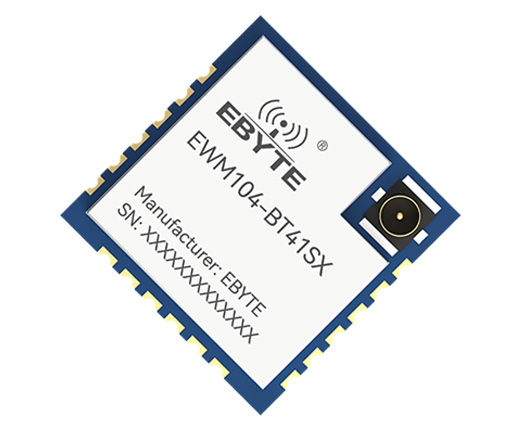

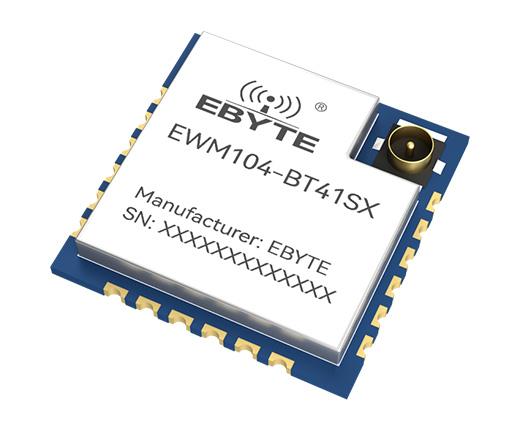

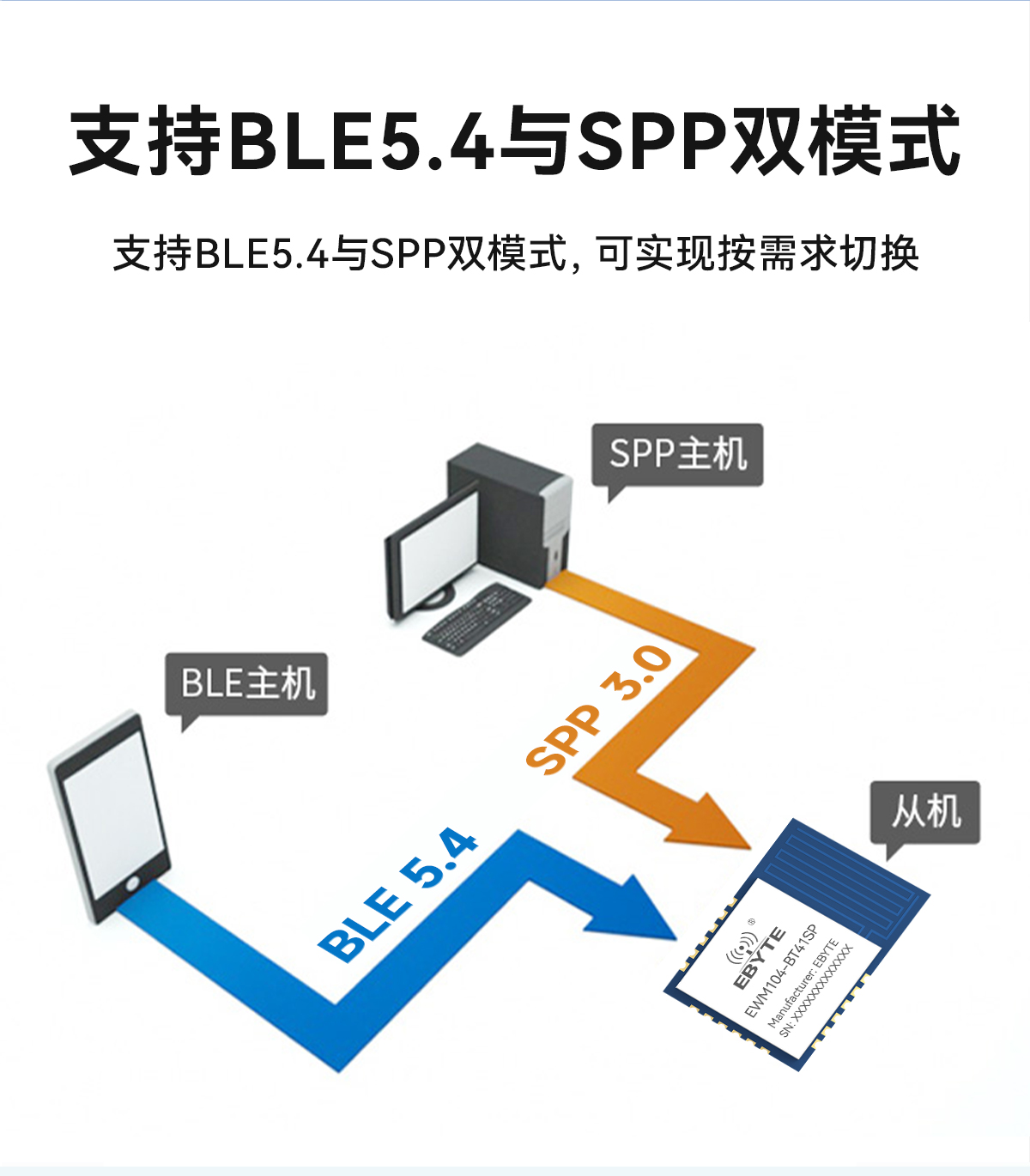

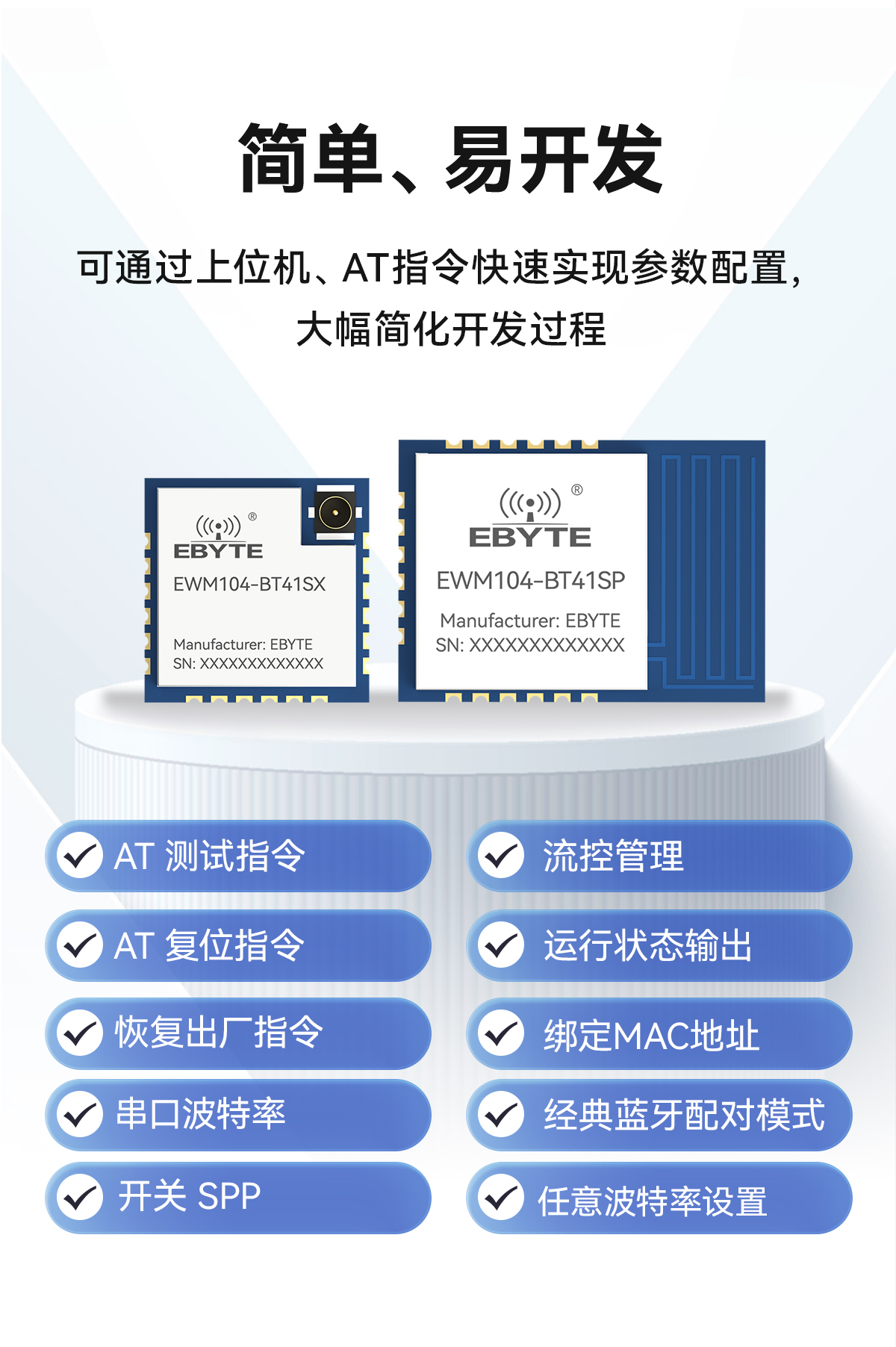

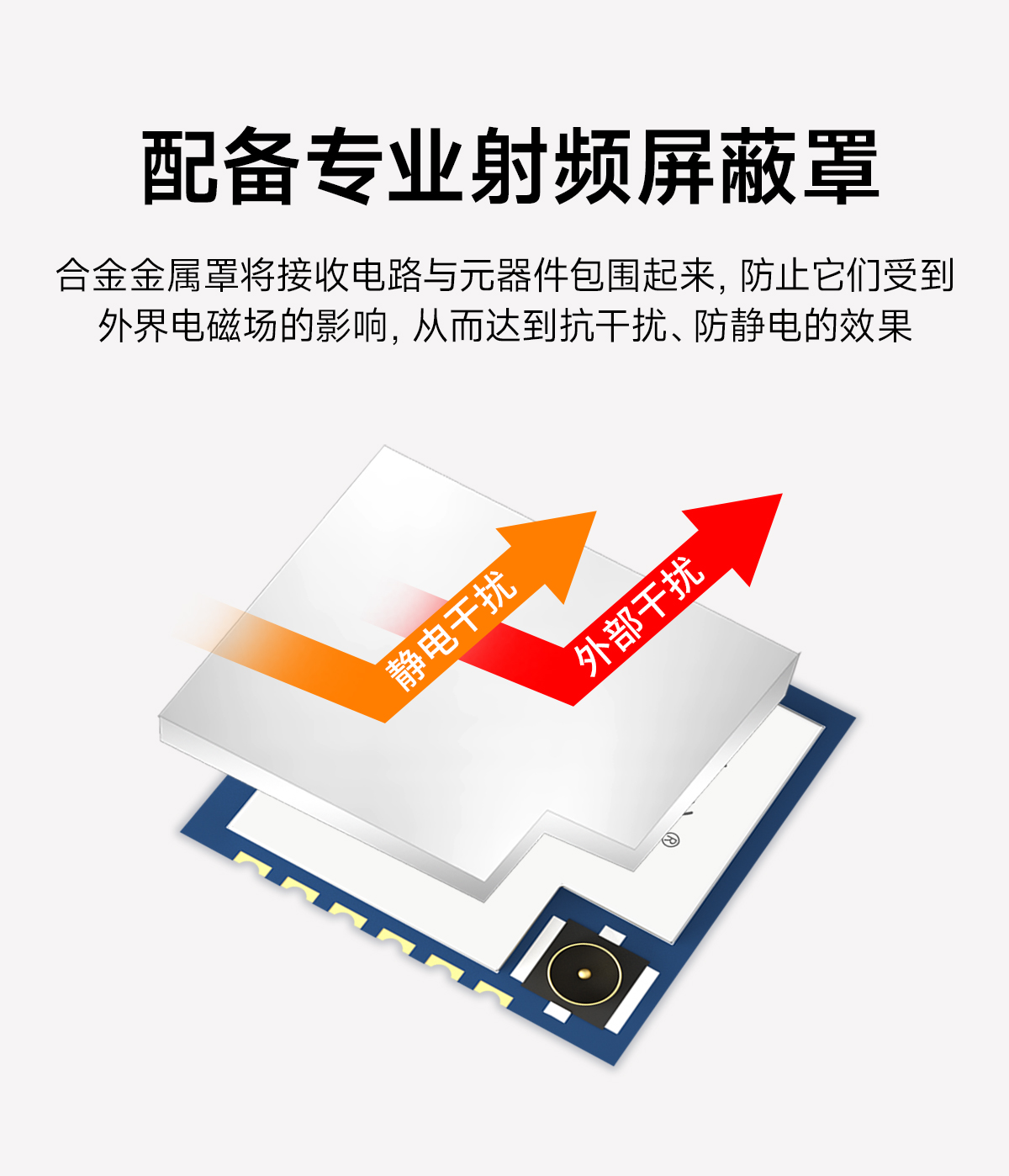

產品簡介：E104-BT41SX模塊是一款基于藍牙5.4版本的串口轉雙模藍牙從機模塊，支持SPP&BLE協議，工作在2.4GHz頻段，可在BLE與經典藍牙之間自由切換。模塊最大發射功率為8dBm。塊支持AT指令配置參數，操作簡單快捷。通過該模塊可以使傳統的低端串口設備或者M(jìn)CU控制的設備進行無線數據傳輸。是一款低成本、操作簡單、可靠的數據傳輸模塊。

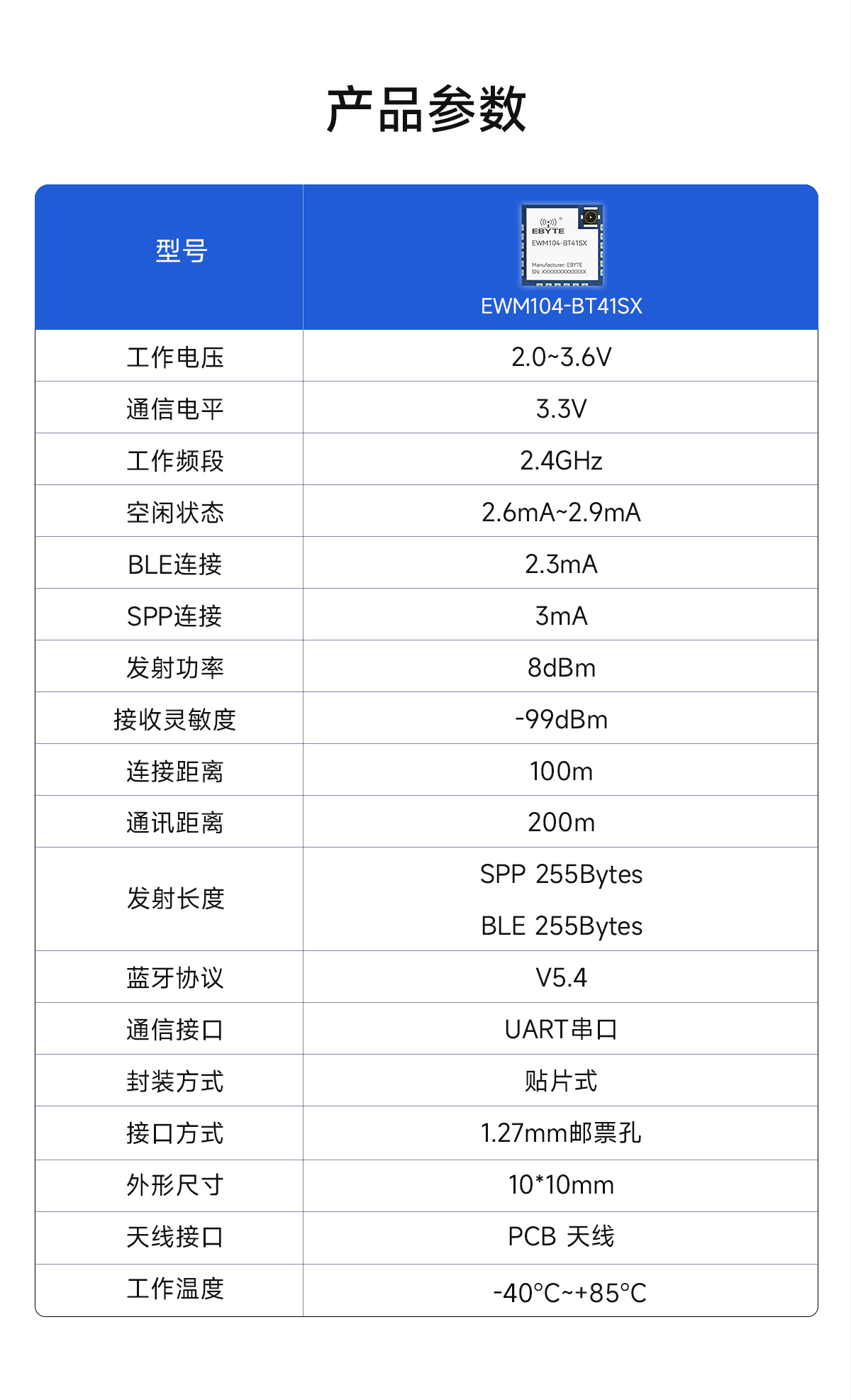

| 主要參數 | 性能 | 備注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作電壓（V） | 2 | 3.3 | 3.6 | ≥3.3V可保證輸出功率 | |
| 通信電平（V） | - | 3.3 | - | 使用5V TTL會燒壞模塊 | |
| 工作溫度（℃） | -40 | - | 85 | ||
| 工作頻段（MHz） | 2400 | - | 2480 | ||
| 功耗 | 雙模等待連接（mA） | - | 2.9 | 29.5 | |
| SPP關閉BLE待連接（mA） | - | 2 | 29.5 | ||
| BLE連接（mA） | 2.3 | 27.4 | |||
| BLE連接發送數據（mA） | 2.3 | 29 | |||
| SPP連接（mA） | 2.8 | 26.6 | |||
| SPP連接發送數據（mA） | - | 2.9 | 27.6 | ||
| 休眠功耗（uA） | - | 1.5 | - | 關閉所有廣播 | |
| 發射功率（dBm） | 0 | 6.4 | 8 | ||
| 接收靈敏度（dBm） | - | -93 | - | ||
| 主要參數 | 描述 | 備注 | |
| 參考距離 | 連接距離 | 100m | 發射功率8dBm，晴朗空曠環境下，天線高度1米 |
| 通信距離 | 200m | ||
| 發射長度 | 255Bytes | SPP/BLE有效負載255字節 | |
| 藍牙協議 | V5.4 | - | |
| 通信接口 | UART串口 | - | |
| 封裝方式 | 貼片式 | - | |
| 接口方式 | 1.27mm | 郵票孔 | |

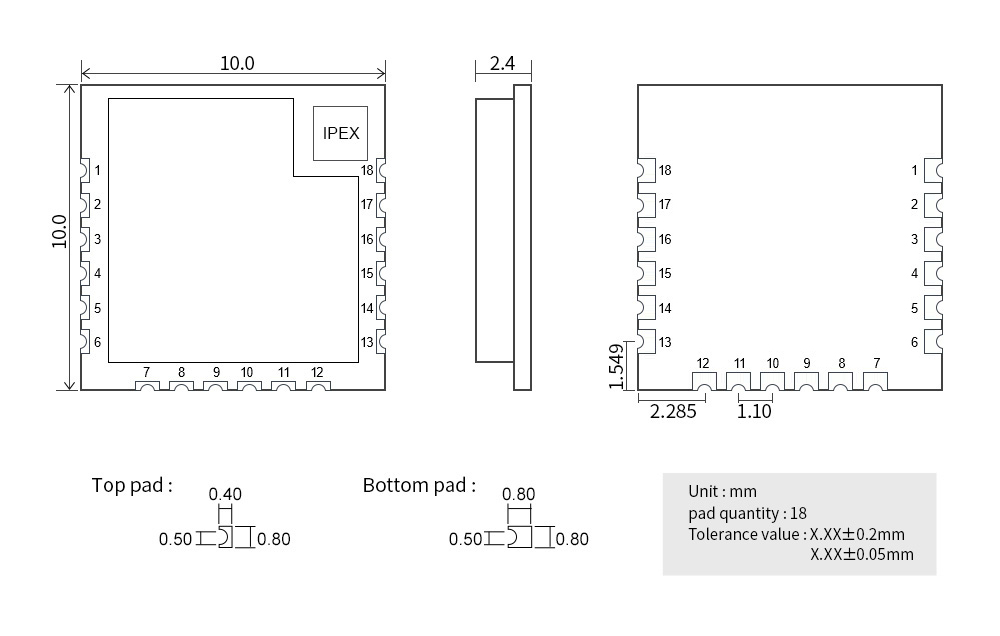

| 外形尺寸 | EWM104-BT41SX | 10*10mm | IPEX-3天線接口 |
| EWM104-BT41SP | 10*14.5mm | PCB天線 | |
| 天線接口 | EWM104-BT41SX | IPEX 3代天線 | 等效阻抗約50Ω |
| EWM104-BT41SP | PCB板載天線 | ||
| 引腳序號 | 引腳定義 | 引腳方向 | 引腳功能 | 說明 |
| 1 | GND | - | 電源地 | 地 |
| 2 | PA8 | - | - | 預留接口 |
| 3 | PA7 | 輸入 | RESTORE | 內部上拉，下降沿，然后保持低電平至少5秒后，所有參數恢復出廠設置并自動重啟模塊。 |
| 4 | PA2 | - | - | 預留接口 |
| 5 | PA1 | 輸出 | 狀態指示 | 連接狀態指示，高電平表示已連接，低電平表示斷開 |
| 6 | PA0 | 輸入 | - | 預留接口 |
| 7 | RST | 輸入 | 復位引腳 | 低電平復位 |
| 8 | WKP(PB6) | 輸入 | 喚醒引腳 | 默認低電平，低功耗模式，關閉所有廣播。拉高進入正常工作模式。 |
| 9 | RXD(PB5) | 輸入 | 串口 | 串口輸入引腳 |
| 10 | TXD(PB4) | 輸出 | 串口 | 串口輸出引腳 |
| 11 | GND | 輸入 | 電源地 | 地 |
| 12 | VCC | 輸入 | 電源正 | 電源 |
| 13 | VDDIO | - | - | 供電選擇引腳 （干電池供電時需將VBAT與VDDIO需短接一起） |
| 14 | LDOIN | - | - | 預留引腳（干電池供電時，可作為GPIO使用） |
| 15 | PB7 | 輸入 | Mode | 低電平：配置模式；高電平：透傳模式 ；（僅在建立連接后有效） |
| 16 | USB0DP | - | - | 程序下載接口 |
| 17 | USB0DM | - | - | 程序下載接口 |
| 18 | GND | - | 電源地 | 地 |
